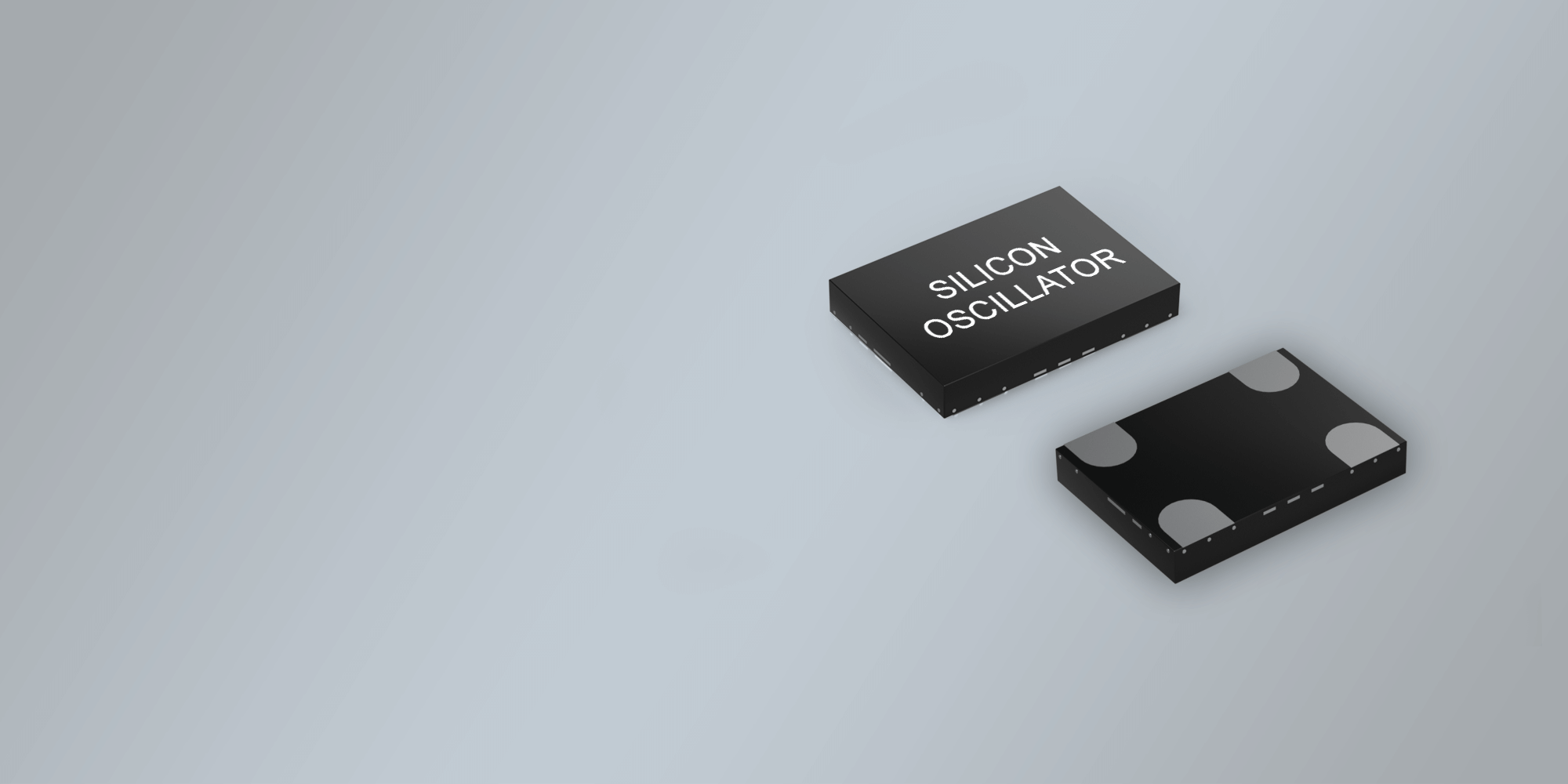

SMD LOW POWER 1 - 137 MHz OSZILLATOR

SMD LOW POWER 1 - 137 MHz
CLOCK OSCILLATORS

Low Power 1 - 137 MHz

THE ADVANTAGES OF Low Power 1 - 137 MHz OSCILLATORS

  • Low Power Silicon Oscillators for low cost
  • Outstanding long-term aging
  • Frequency range of 1 MHz and 137 MHz accurate to 6 decimal places
  • Excellent frequency stability as low as ±20 ppm
  • Outstanding MTBF over 1000 million hours
  • Standard dimensions of oscillators: SMD 2.0 x 1.6 mm, SMD 2.5 x 2.0 mm, SMD 3.2 x 2.5 mm, SMD 5.0 x 3.2 mm, SMD 7.0 x 5.0 mm





  • SMD-Oscillator Series

    LPO

  • Package

    SMD QFN/4pad

  • Frequency Stability

    ± 20ppm ~ ±50 ppm

  • Supply Voltage

    1.8V ~ 3.63V

  • Output Signal

    LVCMOS/HCMOS

  • Application

    All inclusive battery driven solutions

  • Operating temperature range

    0/+70 ~ -40/+85°C

  • Storage temperature range

    -55/+125°C

Package Size (mm)
2.0 x 1.6
2.5 x 2.0
3.2 x 2.5
5.0 x 3.2
7.0 x 5.0
Frequency (MHz)
1.0  – 137.0
1.0  – 137.0
1.0  – 137.0
1.0  – 137.0
1.0  – 137.0

Datasheet SMD LPO: Low Power 1-110MHz Silicon Oscillator

Low Power 1-110MHz Silicon Oscillator

Datasheet SMD LPO: Low Power 115-137MHz Silicon Oscillator

Low Power 115-137 MHz Silicon Oscillator
